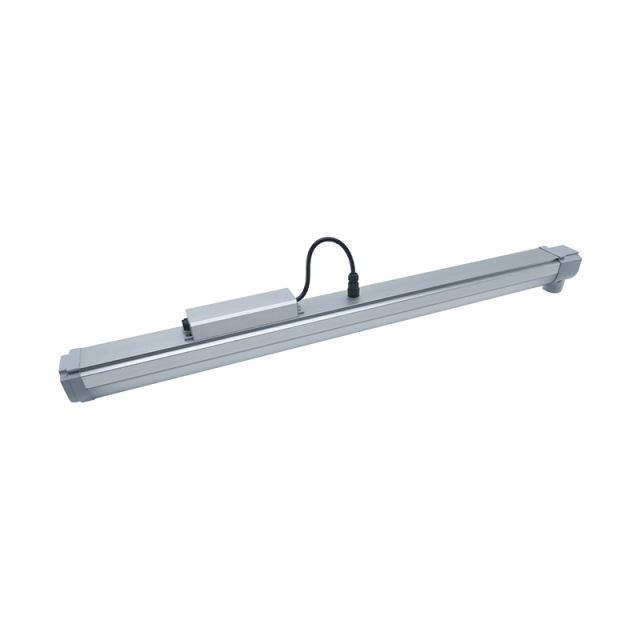

HBH SERIES IP 65 LED TRI-PROOF LOW BAY

CTT & Watt Selectable、90 Mins Emergency                                                                                 FY led tri-proof low bay is with aluminum heat sink and PC cover,widely used for humid underground Parking lot, Frozen Warehouse, factory, supermarket and so on.
Size
599mm / 899mm / 1199mm / 1499mm / 2399mm
Power
20W / 30W / 45W / 53W / 70W / 80W / 100W
Lumen Efficacy
160 lm/w
  • HBH SERIES IP 65 LED TRI-PROOF LOW BAY
  • HBH SERIES IP 65 LED TRI-PROOF LOW BAY
  • HBH SERIES IP 65 LED TRI-PROOF LOW BAY
  • HBH SERIES IP 65 LED TRI-PROOF LOW BAY
Description
Built-in Drive  Technical Parameter
Model FY-HB-600H-20W FY-HB-900H-30W FY-HB-1200H-53W FY-HB-1500H-70W FY-HB-2400H-100W
Power 20w 30w 53w 70w 100w
Lumen 3200 lm 4800 lm 8480 lm 11200 lm 16000 lm
Lumen efficacy 160 lm/w
Input Voltage AC120-277V/ AC120-347V/AC200-480V , 50/60HZ
Power factor >0.95
Working temperature -25℃~45℃
Color temperature 3000K-6500K
Beam angle  120°
CRI Ra>80
Housing color Aluminum
Lifespan >50.000 hours@L70
Fixture dimension 599*89.7*90mm 899*89.7*90mm 1199*89.7*90mm 1499*89.7*90mm 2399*89.7*90mm


External Drive  Technical Parameter

Model FY-HB-1200B-45W FY-HB-1200B-70W FY-HB-1500B-70W FY-HB-2400B-80W FY-HB-2400B-100W
Power 45w 70w 70w 80w 100w
Lumen 7200 lm 11200 lm 11200 lm 12800 lm 16000 lm
Lumen efficacy 160 lm/w
Input Voltage AC120-277V/AC200-480V, 50/60HZ
Power factor >0.95
Working temperature -25℃~45℃
Color temperature 3000K-6500K
Beam angle  120°
CRI Ra>80
Housing color Aluminum
Lifespan >50.000 hours@L70
Fixture dimension 1199*89.7*90mm 1499*89.7*90mm 2399*89.7*90mm
